EKKO EA15A-138 Semi-Electric Straddle Stacker, 3,300 lbs Capacity, 138" Height

The EKKO EA15A-138 is a semi-electric straddle stacker built to bridge the gap between a hand pallet jack and a full electric forklift. The operator walks the unit into position by hand, then power-lifts the load with the 2.2 kW lift motor — useful for loading and unloading trucks, working loading docks, moving pallets across stock rooms, staging on manufacturing floors, and general warehousing.

Capacity is 3,300 lbs at a 20 in load center, with a maximum lift height of 138 in (11.5 ft). The straddle leg design lets the forks reach over closed-bottom pallets and skids that a counterbalanced truck would have to set down to clear. Both the forks (8.66–32 in) and the legs (35–51 in) adjust, so the same unit handles 40 in GMA pallets, narrower 36 in pallets, and oversized 48 in skids without swapping equipment.

Steel construction with robotic welding carries the load frame and mast, and the lift system runs on a sealed 12V/120AH lead-acid battery with the 12V/15A on-board charger included — plug the unit into a standard wall outlet between shifts. From EKKO Lifts, the Class I–V manufacturer that builds this category from a 50,000+ sq ft Pomona, California facility.

• Power lift, manual drive — the operator pushes the unit to position by hand and uses the powered mast for vertical lift, keeping the price below a full electric stacker while still doing the work a hand stacker can't.
• Adjustable forks (8.66–32 in) and adjustable straddle legs (35–51 in) — one unit fits multiple pallet sizes and skid widths without tools or attachments.
• 138 in (11.5 ft) lift height with 45 in fork length and 4 in single-fork width.
• 12V/120AH lead-acid battery included, paired with a 12V/15A on-board charger — no separate charging station or aftermarket battery purchase required at delivery.
• 2.2 kW lift motor with the load center rated at 20 in.

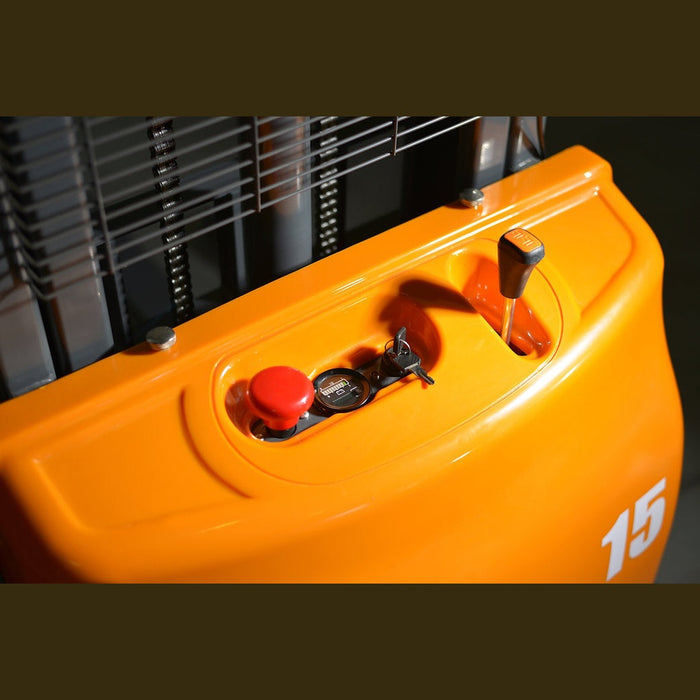

• Ergonomic comfort handle for operator pushing and steering.
• Steel construction with robotic welding on the frame and mast.
• 1,234 lb service weight — light enough for upper-floor warehouse work where a heavier counterbalanced forklift would exceed floor ratings.

Sized for loading docks, stock rooms, manufacturing floors, warehouses, and truck loading and unloading. The 59 in turning radius and 70 in overall length set the working footprint, and the 59 in maximum overall width fits standard dock aisles. Lowered fork height of 2.6 in clears the deck on most pallets without ramping. The 167 in extended mast height is the clearance the unit needs at the top of its travel — measure ceiling, sprinkler heads, and door headers before placing.

• EKKO EA15A-138 semi-electric straddle stacker
• 12V/120AH lead-acid battery (installed)
• 12V/15A internal on-board charger

What's the rated capacity and load center?

3,300 lbs at a 20 in load center.

How high does it lift?

138 in maximum lift height — about 11.5 ft. Extended mast height (the top of the unit at full lift) is 167 in; lowered mast height for transport and low-doorway clearance is 95 in.

Will the forks fit my pallets?

The forks are adjustable from 8.66 in to 32 in overall width and the straddle legs adjust from 35 in to 51 in, so the unit handles 40 in GMA pallets, narrower 36 in pallets, and wider skids without tools.

Is the battery and charger included?

Yes. The unit ships with a 12V/120AH lead-acid battery installed and a 12V/15A internal on-board charger — plug into a standard wall outlet.

Is it fully electric, or does the operator push it?

Semi-electric. The mast lifts under power; the operator walks the unit to position by hand using the ergonomic comfort handle. This is a deliberate cost-down vs. a fully powered drive stacker for facilities that don't need rideable travel.

What footprint does it need to maneuver?

Turning radius is 59 in, overall length is 70 in, and maximum overall width is 59 in. Measure your tightest aisle, doorway, and dock-corner clearance against those numbers.

Manual and technical documents available on request — contact sales@forkliftking.com or call +1 (307) 441-9566.
